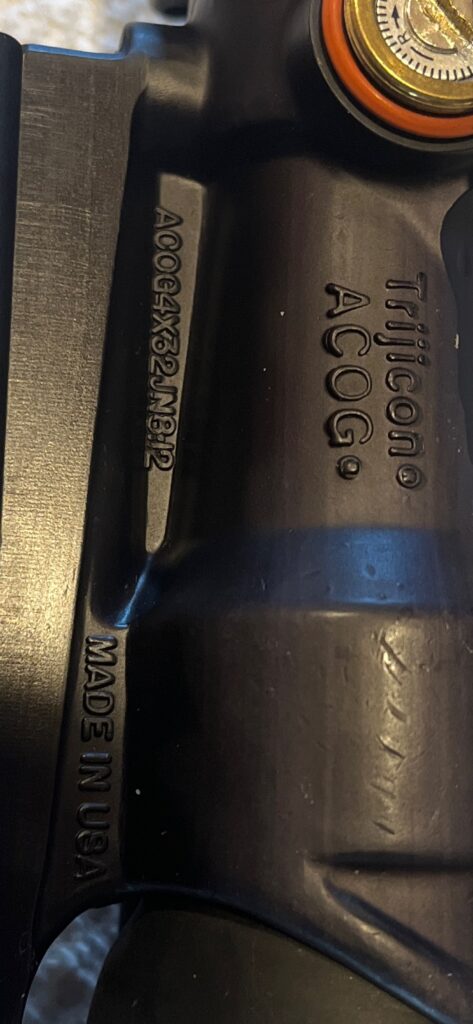

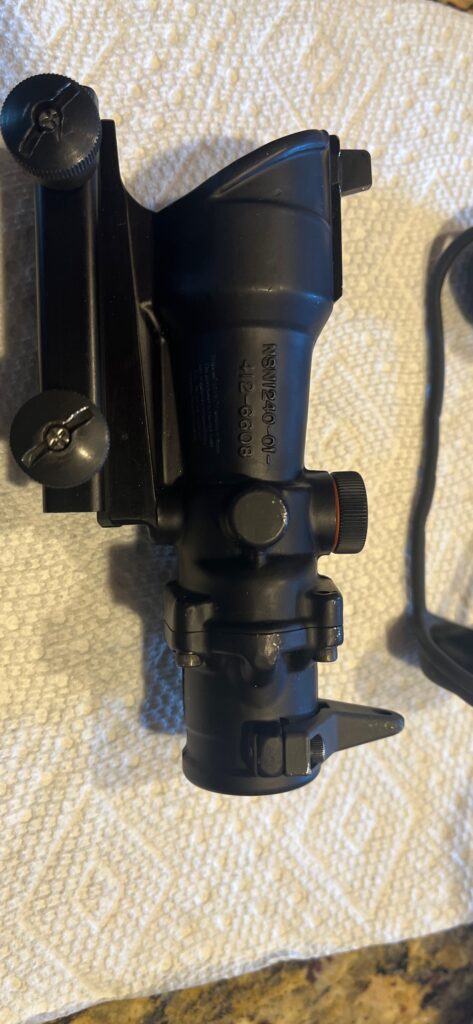

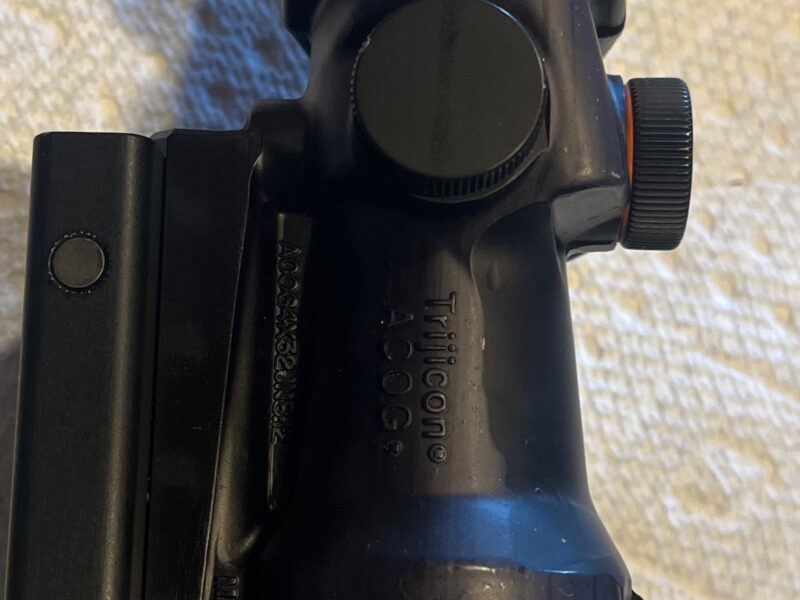

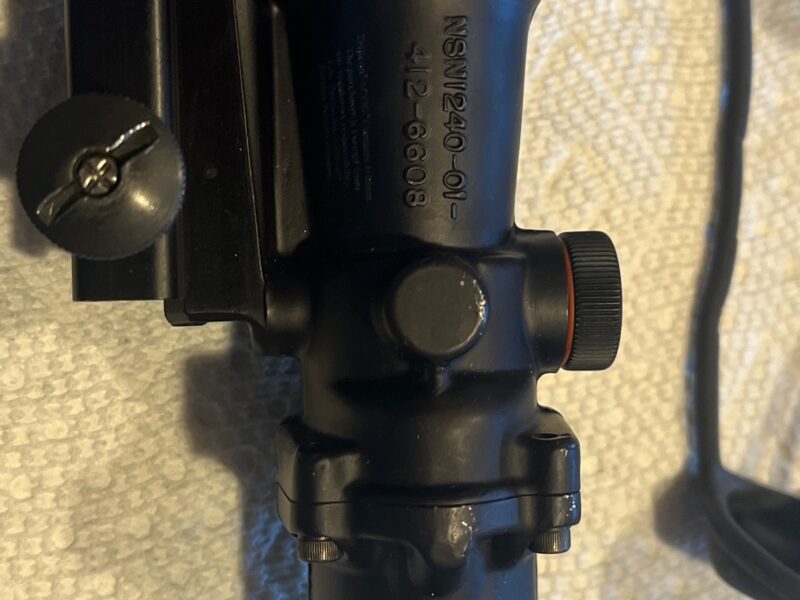

ACOG TN01NSN M4A1

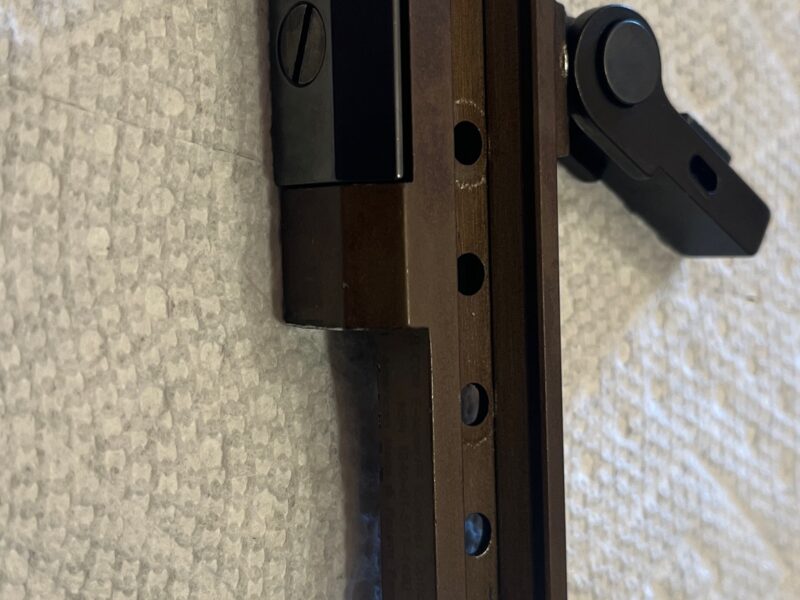

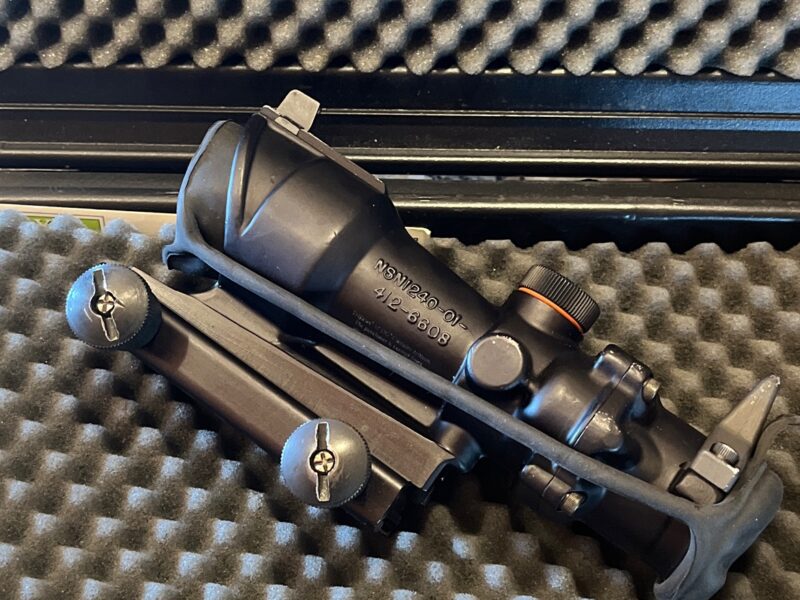

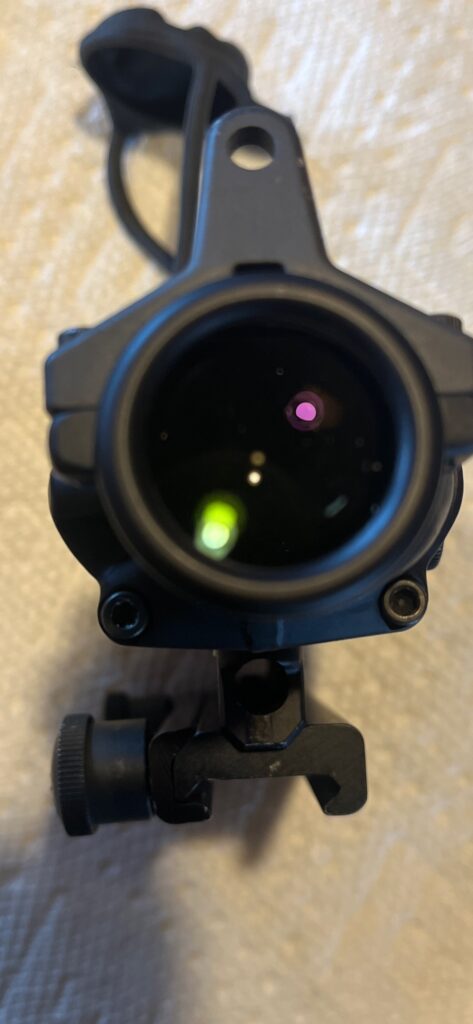

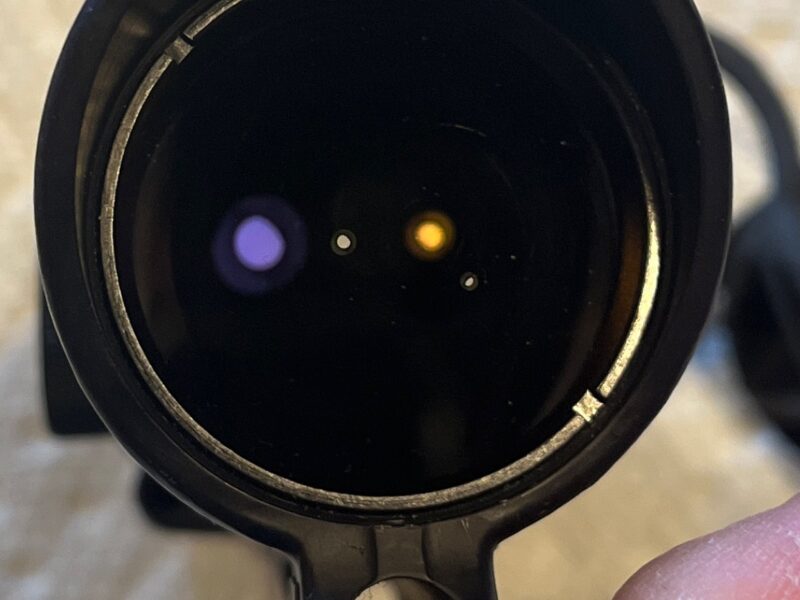

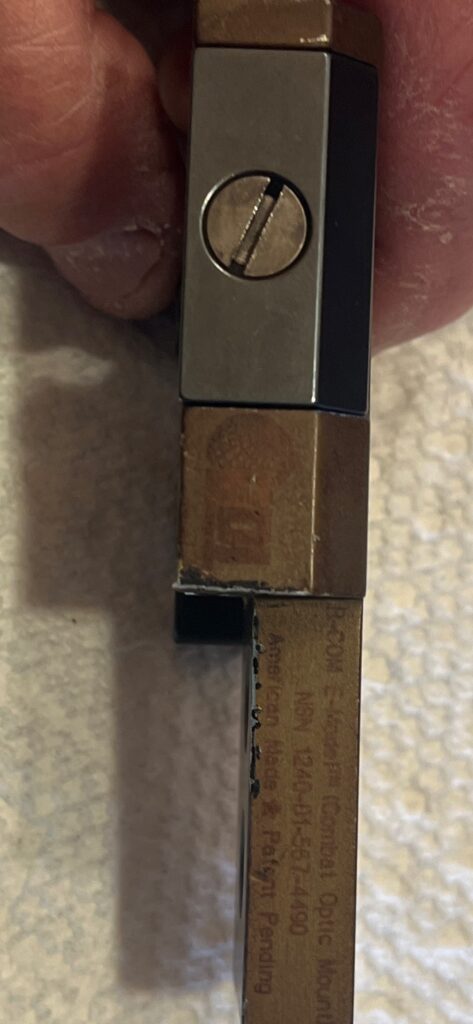

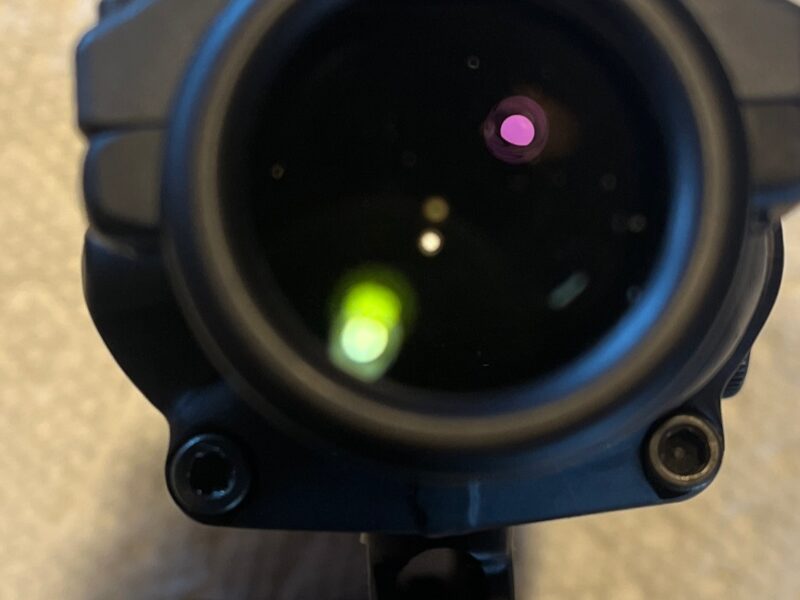

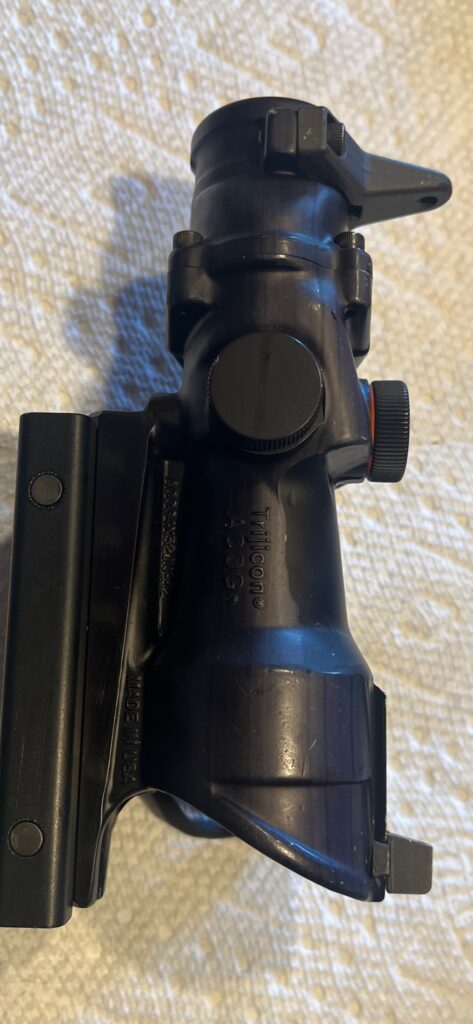

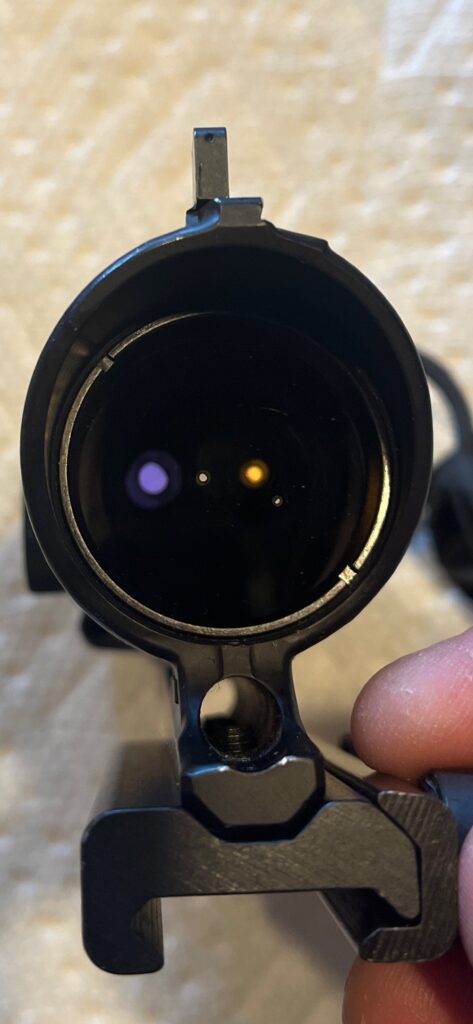

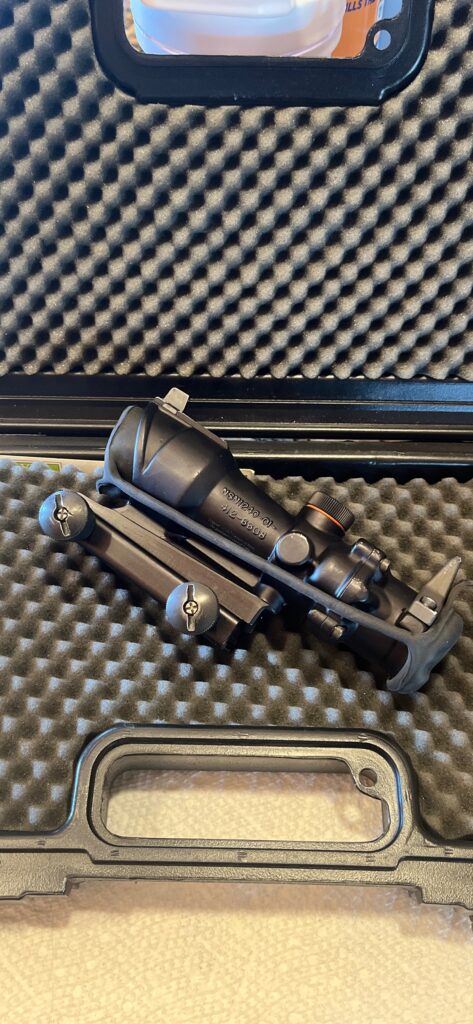

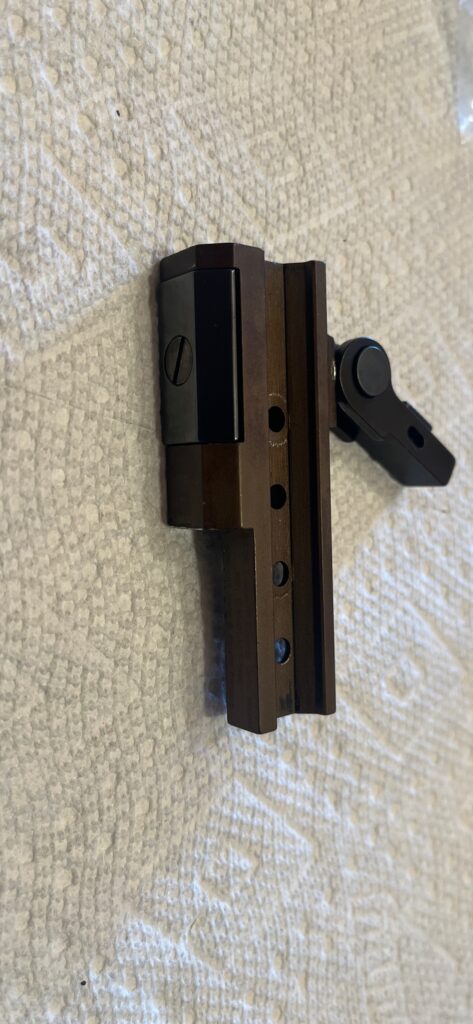

Early Model/ACOG 4×32 Scope with Yellow Center Illumination for M4A1 – includes Flat Top Adapter, Backup Iron Sights and Dust Cover.

The TA01NSN was designed specifically for the US Special Operations Command SOPMOD M4 Carbine. To meet their requirements, the reticle bullet drop compensator and range finding stadia lines are based on the trajectory of the 62 grain bullet from a 16 inch barrel, flattop mount (Picatinny rail Mil.Std.1913).

Specifications:

– Magnification: 4X

– Eye Relief: 1.5 in

– Exit Pupil: 8 mm

– Field of View: 7.0 degrees

– Length: 5.8 in

– Weight: 9.9 oz

– Field of View: 36.8 ft at 100 yds

– Adjustment: 3 clicks per inch at 100 yds

Tritium Activity: 100 milliCuries in one source

______________

ACOG (Advanced Combat Optical Gunsights) – Hit fast in any light

The ACOGs are internally adjustable, compact telescopic sights with tritium illuminated reticle patterns for use in low light or at night. The ACOGs combine traditional, precise distance marksmanship with close-in aiming speed. Although the ACOGs have many features which are very advantageous for military use, they were developed by Trijicon without government funding.

Designed for use with the M16 family, every feature of its mechanical and optical design was chosen for a single purpose: to provide increased hit potential in all lighting conditions — without failure-prone batteries.
